As I posted elsewhere, I've created a 1:1 scale hardware chart to make it easy to identify parts. Here's what that looks like:
No more running piles of wire through the towers! Because the v3 contains all the "brains" and motors in the top, there's only five wires to run now! 1 12awg black wire goes in the X tower, 1 12awg black wire and two 26ga white wires run in the Y tower, and 1 12awg red wire runs in the Z tower. One black & red go "up" to the RAMBo and one black goes "down" to the Onyx. The + terminal of the Onyx is directly connected to the power supply via a 700mm 12awg red wire. That amount of wire should make it very easy to work on the Onyx or power supply if necessary.
More soon!
g.

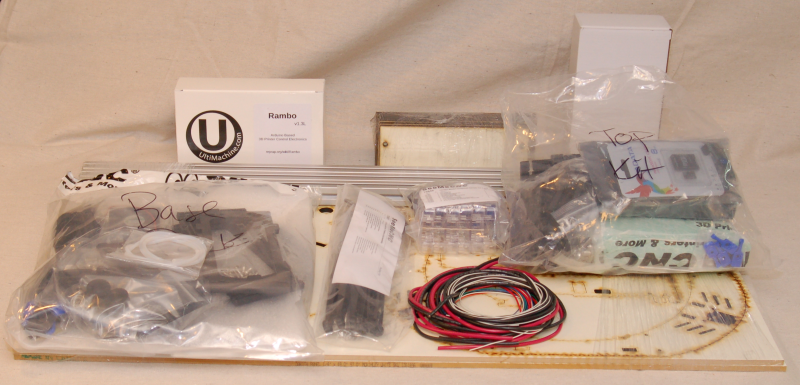

This is what the kit looks like when you get it. There may be some small packaging differences, but by and large, the image is representative of what you'll receive.
People that have built earlier versions of the Rostock MAX will be happy to know that there's no more RTV! The HE280 hot end has been updated to use a heater cartridge and that means no RTV is required on the hot end. As a safety feature, the HE280 has a low-temp thermal fuse attached to the heat sink. If there's ever a runaway heating condition, the thermal fuse will pop and kill power to the heater cartridge - it's wired inline.WIP info & photos.
WIP info & photos.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects
- Tincho85
- Printmaster!
- Posts: 659
- Joined: Sun Nov 03, 2013 12:27 pm
- Location: Buenos Aires, Argentina
Re: WIP info & photos.
As always, great work Gene.
Hmmm, I think I said this before, but being grateful is never redundant. You should know that when I was searching the web for my first 3d printer, your manual was the thing that made me pull the trigger and buy the RostockMAX.
A users guide/assembly manual is very important for first time users.
Hmmm, I think I said this before, but being grateful is never redundant. You should know that when I was searching the web for my first 3d printer, your manual was the thing that made me pull the trigger and buy the RostockMAX.
A users guide/assembly manual is very important for first time users.
Martín S.
Re: WIP info & photos.
I'm happy to hear that Tincho85! I'm glad you liked it. I enjoy writing them.
g.
g.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects
Re: WIP info & photos.
Nice work Gene!!!!
Self designed plasma cutting table running Mach3
Orbot Hadron running and E3d 6, Smoothie on an Azteeg Mini, LCD, fully adjustable glass bed of my design with a silicone mat heater.
Prtrbot Simple Metal
Table top CNC running Mach 3
Orbot Hadron running and E3d 6, Smoothie on an Azteeg Mini, LCD, fully adjustable glass bed of my design with a silicone mat heater.
Prtrbot Simple Metal
Table top CNC running Mach 3
Re: WIP info & photos.
SeeMeCNC is releasing a lot of really innovative stuff this year. It's nice to see. I've never heard of anyone doing a thermal fuse on a hot end before.geneb wrote:People that have built earlier versions of the Rostock MAX will be happy to know that there's no more RTV! The HE280 hot end has been updated to use a heater cartridge and that means no RTV is required on the hot end. As a safety feature, the HE280 has a low-temp thermal fuse attached to the heat sink. If there's ever a runaway heating condition, the thermal fuse will pop and kill power to the heater cartridge - it's wired inline.
Next thing I'd like to see is a 3D printer controller with three-wire fan headers, like PCs have, so the firmware could detect if the fan wasn't spinning for some reason.
Questions? Ask in a thread - PMs are off.
AI Calibration | Dimensional Accuracy Calibration | Hand-Tune your PID | OctoPi + Touchscreen setup | My E3D hot end mount, Z probe, fan ducts, LED ring mount, filament spool holder, etc.
AI Calibration | Dimensional Accuracy Calibration | Hand-Tune your PID | OctoPi + Touchscreen setup | My E3D hot end mount, Z probe, fan ducts, LED ring mount, filament spool holder, etc.
Re: WIP info & photos.
Moved to Rostock Max V3,
Last edited by Maddog on Thu Sep 15, 2016 11:18 pm, edited 1 time in total.
Re: WIP info & photos.
It's hit or miss on the Eris. SeeMeCNC claims it's more accurate on the MAX v3, possibly because the arms are stiffer.Maddog wrote:Anybody independent reviewed the autoleveling feature yet? Does it work good? How accurate is it?
I don't like that about it, but then I live where there are earthquakes.While putting all the goodies up top may work for SEEMECNC, being top heavier is not a good thing. It's taller right? It was tall enough already.
Look for the Astrosyn steel and rubber dampers on tridprinting.com. I would link you, but their site is flaky right now. The cork/rubber ones are crap compared to the Astrosyns because only the Astrosyns provide full isolation. With rubber/cork, plenty of vibration is free to be transmitted to the frame through the mounting screws.I would like to see stepper vibration mounts that reduce noise. Cork gaskets work?
The motor mount is designed to allow repositioning the motor in order to modify the tension.Did they fix it so you can tighten the belts without 3 hands? Phillips Screwdriver, wrench and flat screwdriver. I prefer to use 2 hands. Can't a simpler tension screw be added to each tower.
In 2016, I think every newly released printer should have support, at least as an add-on, for three extruders. Accommodations should be built into the frame, etc.I was hoping they would add a dual extruder option and a real place for the filament spool to go.
