I have my Rambo running on the workbench now. I have most things running. The 400 something watt atx powers supply I got from seemecnc doesn't seem to be up to the task. I can have either the extruded or the bed running but not both at the same time. The ps trips after only a short time. Is this normal? My solution is to add a second ps just for the bed. Do I have a bad ps?
The good news is the bed heats up to 100 degrees in just slightly more than five minutes. The bed is just sitting on a glass table top in free air, no glass or metal plate.
I guess this is the first post in this section....
X
The good news is the bed heats up to 100 degrees in just slightly more than five minutes. The bed is just sitting on a glass table top in free air, no glass or metal plate.
I guess this is the first post in this section....
X
Re: Power supply glitch
Do any of the wires feel hot?
Re: Power supply glitch
What trips? The mains power supply? The power supply unit (PSU)? The fuse on the Rambo board?
Myself I'm using the PSU that was supplied by SeeMECNC, pretty sure it was 430W
On the workbench I assume you have everything connected via the Rambo. How many wires are connected from the PSU to the Rambo for the Hotbed? And what colours?
Myself I'm using the PSU that was supplied by SeeMECNC, pretty sure it was 430W
On the workbench I assume you have everything connected via the Rambo. How many wires are connected from the PSU to the Rambo for the Hotbed? And what colours?
Re: Power supply glitch
It is the seemecnc 430 watt power supply. The power supply just quits after about a minute of running both the extruded and heated bed. Either the extruder or bed will run forever but not both at the same time. In a few minutes I can turn it off and then back on and all is good. The wiring seems to be correct no shorts or anything. There are no shorts to the workbench or wires laying around. I connected a 100watt old computer power supply just for the heated bed and it is running just fine. No wires are getting too hot. The resistance for the bed is 3 ohms and the extruder is 5.5 ohms. I believe that is close enough to not be a problem. No smoke, no sparks, no loud noises, nothing seems unusual on the Rambo. I have not tried leaving the ps on to see if it auto resets. I'm not that brave or perhaps stupid. Four steppers connected but not engaged. They are current limited in configuration.h with "135" each. That is something about one amp or so. Shouldn't be a problem. I can run it with two power supplies i guess. I thought the 430 watt power supply would run the whole show tho...
X
X
Re: Power supply glitch
Just to clarify things more, everything connected via the Rambo. The fusee on the Rambo board are ok. The mains to the psu are normal. Yellow and black wires to the Rambo. 12.24 volts to the Rambo. Correct polarity. Three yellow and black pairs of wires from the power supply to the Rambo. The wires are not getting hot. The pus just shuts itself off.September wrote:What trips? The mains power supply? The power supply unit (PSU)? The fuse on the Rambo board?
Myself I'm using the PSU that was supplied by SeeMECNC, pretty sure it was 430W
On the workbench I assume you have everything connected via the Rambo. How many wires are connected from the PSU to the Rambo for the Hotbed? And what colours?
Thanks,
X
Re: Power supply glitch
you should have a total of 5 pairs of wire ..from psu to rambo .
Three for the heat bed .
one for the heater
and another one for motor and stuff .
Three for the heat bed .
one for the heater
and another one for motor and stuff .
Re: Power supply glitch
*FOUR* for the heated bed. Start reading at page 97.
g.
g.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects
Re: Power supply glitch

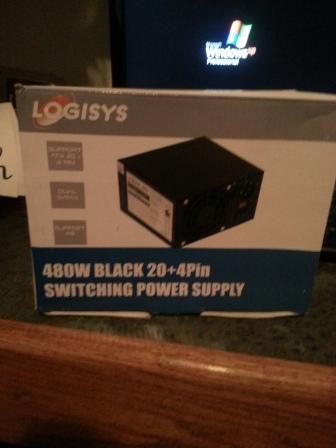

I am having the exact same problem with my Rostock. I re-verified that I have 4 power wires to the bed. Here is a picture of the power supply box that housed the ps that came with my Rostock from seemecnc. I think I will try to add another set of power conductors to the bed heater by using the ones I dedicated for powering the fan and add a second power supply for the fan.
- Jimustanguitar
- ULTIMATE 3D JEDI
- Posts: 2631
- Joined: Sun Mar 31, 2013 1:35 am
- Location: Notre Dame area
- Contact:
Re: Power supply glitch
My second power supply (in 4 months) bit the dust last night. I'm shopping for a different, better one today.
What I'm learning is that the 480 watt rating of these supplies isn't all available to the +12v output. At 12vdc, the OEM Logisys only provides 16A of current. This equals only 192 watts of the 480 that the supply is capable of producing. Keep in mind that the wattage rating on the box for something like this is usually the max max max that it can possibly produce. In common practice, you can only reasonably expect a device to perform at RMS (.707) of its specified max wattage, and that's if they're being honest with the rating on the box. That's also not usually recommended to run anything 'turned to 11' for an extended period of time. Anyway, that was the long drawn out way of expressing that you're probably only capable of sustaining 50% of the specified current draw on something like this, so I wouldn't expect to get more than 8 *real* amps out of the OEM power supply.
So... With a 3ohm bed and 5.5ohm hot-end that both run on 12v, you're drawing a full 6 amps before taking all 4 stepper motors and the Rambo board itself into account (plus any fans, LEDs, powered end-stops, and whatever else you're using)... I bet that's at least 10 or 12 amps when everything is moving, and there's just no headroom for the power supply to operate happily under the load.
If I was building a machine like this from scratch, and had done the above math in the design stage, I would not recommend a power supply that was rated for less than 25A @ 12Vdc. That's what I intend to buy at a minimum, I'll let you know what deals I find.
What I'm learning is that the 480 watt rating of these supplies isn't all available to the +12v output. At 12vdc, the OEM Logisys only provides 16A of current. This equals only 192 watts of the 480 that the supply is capable of producing. Keep in mind that the wattage rating on the box for something like this is usually the max max max that it can possibly produce. In common practice, you can only reasonably expect a device to perform at RMS (.707) of its specified max wattage, and that's if they're being honest with the rating on the box. That's also not usually recommended to run anything 'turned to 11' for an extended period of time. Anyway, that was the long drawn out way of expressing that you're probably only capable of sustaining 50% of the specified current draw on something like this, so I wouldn't expect to get more than 8 *real* amps out of the OEM power supply.
So... With a 3ohm bed and 5.5ohm hot-end that both run on 12v, you're drawing a full 6 amps before taking all 4 stepper motors and the Rambo board itself into account (plus any fans, LEDs, powered end-stops, and whatever else you're using)... I bet that's at least 10 or 12 amps when everything is moving, and there's just no headroom for the power supply to operate happily under the load.
If I was building a machine like this from scratch, and had done the above math in the design stage, I would not recommend a power supply that was rated for less than 25A @ 12Vdc. That's what I intend to buy at a minimum, I'll let you know what deals I find.
- Jimustanguitar
- ULTIMATE 3D JEDI
- Posts: 2631
- Joined: Sun Mar 31, 2013 1:35 am
- Location: Notre Dame area
- Contact:
Re: Power supply glitch
The 16 Amp OEM unit can be had on Newegg for about $17. For a cheap upgrade ($22) to a 25 Amp unit, check out this one: http://www.newegg.com/Product/Product.a ... 6817170028
- foshon
- Printmaster!
- Posts: 605
- Joined: Fri Mar 08, 2013 3:05 pm
- Location: Just to the right of SeeMeCNC
Re: Power supply glitch
I would strongly recommend, if you are going to use a computer power supply, looking at the ones that multiple 12v rails. Jimustanguitar is right the 12V rail of these el'cheapos does not have enough umph to supply the Rambo. Using a dual 12v rail model allows for separating the load produced by the hot bed from the motors and electronics.
Typically multiple rail ATX power supplies have one rail that is able to higher currents (the bed) and one or more that are designed for less (everything else). It is also worth noting that most ATX power supplies will struggle to produce amperage on the 12v rail without at least a little load on the 5v line.
Typically multiple rail ATX power supplies have one rail that is able to higher currents (the bed) and one or more that are designed for less (everything else). It is also worth noting that most ATX power supplies will struggle to produce amperage on the 12v rail without at least a little load on the 5v line.
Purple = sarcasm
Please do a board search before posting your question, many have been answered with very time consuming detail already.
Please do a board search before posting your question, many have been answered with very time consuming detail already.
- Jimustanguitar
- ULTIMATE 3D JEDI
- Posts: 2631
- Joined: Sun Mar 31, 2013 1:35 am
- Location: Notre Dame area
- Contact:
Re: Power supply glitch
What sort of a 5v load would you recommend? Do you have your LEDs or Peek fan running on this rail?foshon wrote:It is also worth noting that most ATX power supplies will struggle to produce amperage on the 12v rail without at least a little load on the 5v line.
Re: Power supply glitch
10ohm 10watt (from radioshack) resistor on the 5v line will work, for this purpose to simulate a load. however you could also attach a 5v fan, or device. That' could also work if it drops enough load.Jimustanguitar wrote:What sort of a 5v load would you recommend? Do you have your LEDs or Peek fan running on this rail?foshon wrote:It is also worth noting that most ATX power supplies will struggle to produce amperage on the 12v rail without at least a little load on the 5v line.
My rostock build log http://forum.seemecnc.com/viewtopic.php?f=42&t=1228
Re: Power supply glitch
Keep in mind that I'm biased -- my Logisys caught fire before I ever powered it on. That said, there's no way I'd buy another Logisys with just marginally more amperage on the +12V rail. There are lots of good power supply vendors out there. The thing is, the good supplies cost more than $25.Jimustanguitar wrote:The 16 Amp OEM unit can be had on Newegg for about $17. For a cheap upgrade ($22) to a 25 Amp unit, check out this one: http://www.newegg.com/Product/Product.a ... 6817170028
