Custom Electrical Enclosure for Siemens G120X Demo

Show off your latest creations, whether 3D printed or not
Post Reply
thwfwa
Plasticator
Posts: 5
Joined: Fri Mar 30, 2018 12:08 am

Custom Electrical Enclosure for Siemens G120X Demo

Post by thwfwa »

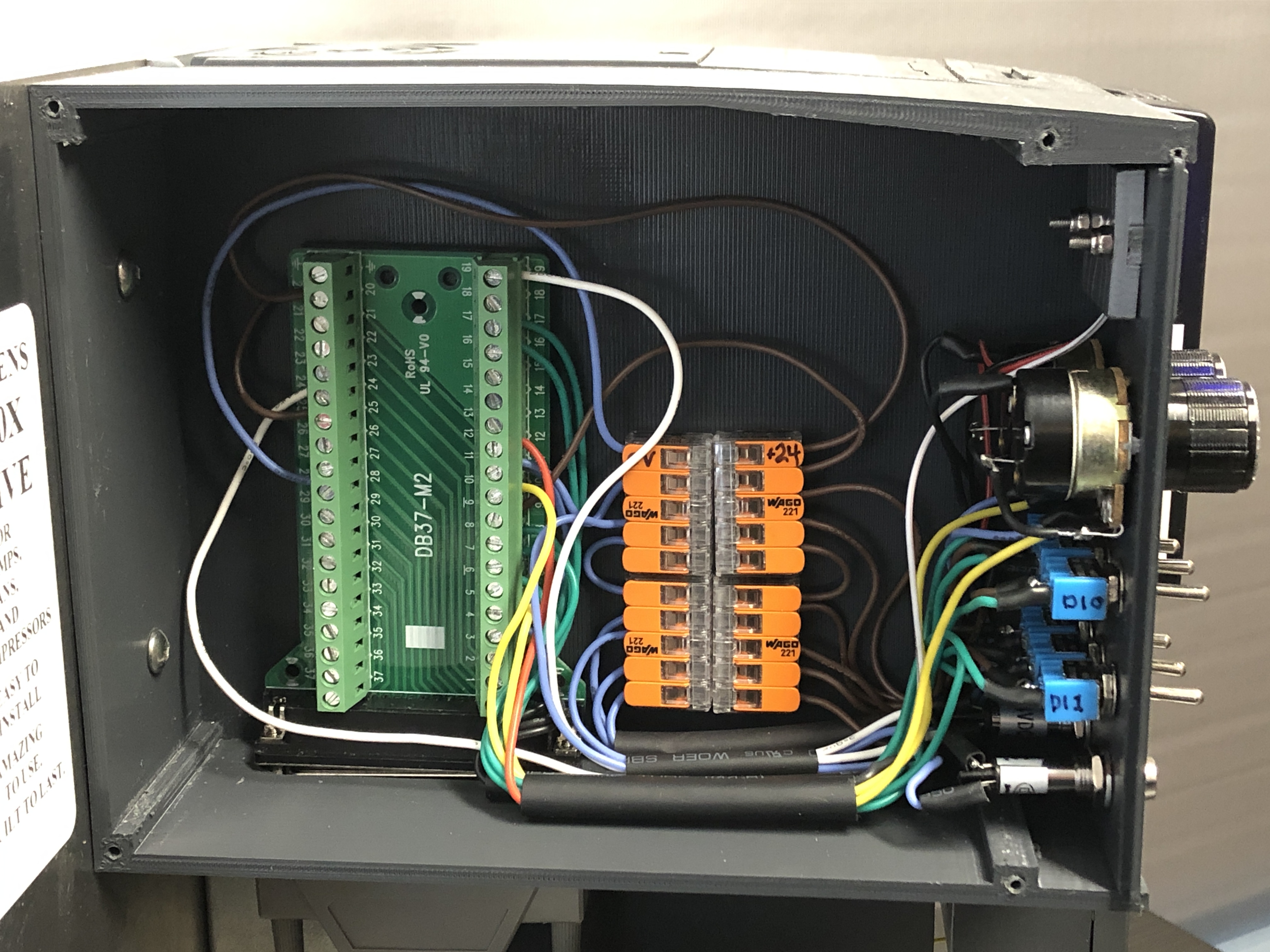

I provide technical and sales support of motion products for C & E Advanced Technologies, a industrial controls distributor in the Midwest. One of the lines that I support is Siemens industrial drives. I use demo units of many of the products we sell for training and support. Recently I put together a demo system for a G120X variable speed drive using a custom designed control enclosure printed with my RostockMac V3.2 printer from SeeMeCNC. I used FreeCAD to design the main box, the lid, the removable front panel, and a bezel for the small panel meter. It took a couple of trials to reach the right final design, but it has been worth the effort. The box matches the curves of the Siemens drive to give a uniform profile across the top of the demo. The removable front panel and circuitry can be quicky swapped for differing presentations, based upon customer expectations. The design turned out so well that a sister company just requested two units for their use.
Attachments
Meter Bezel.jpg
Meter Bezel.jpg (8.35 KiB) Viewed 23964 times
Meter Back.jpg
Meter Back.jpg (12.62 KiB) Viewed 23964 times

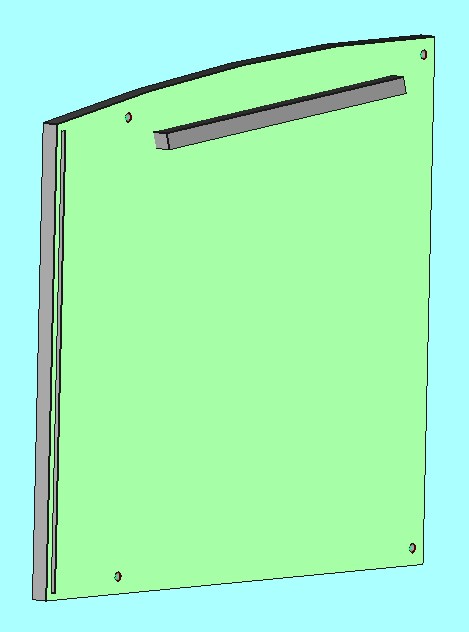

G120 Sidecar Lid.jpg
G120 Sidecar Lid.jpg (24.4 KiB) Viewed 23964 times

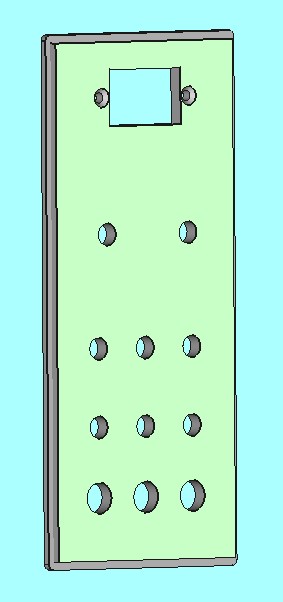

G120 Sidecar Faceplate.jpg
G120 Sidecar Faceplate.jpg (21.11 KiB) Viewed 23964 times

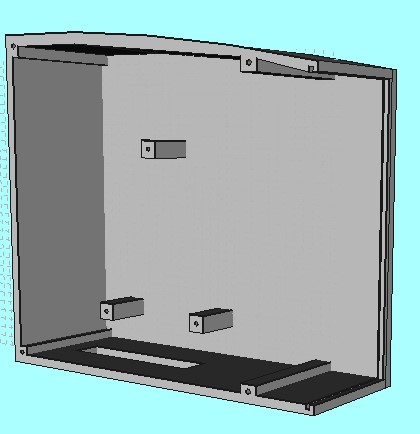

G120 Sidecar Box.jpg
G120 Sidecar Box.jpg (41.38 KiB) Viewed 23964 times
geneb
ULTIMATE 3D JEDI
Posts: 5362
Joined: Mon Oct 15, 2012 12:47 pm
Location: Graham, WA
Contact:

Re: Custom Electrical Enclosure for Siemens G120X Demo

Post by geneb »

Nicely done! That's just screaming for heat-set inserts. :)
