Solidworks and STLs

Post by Proto »

Hello all

I have been working with Solidworks, on and off, since 2000. And I have had the same issue since that time... Translations

It doesn't matter if it is .IGS .STL or even .DXF . At worst I have a bunch of disjointed surfaces that won't stitch together into a solid model. Or at best it translates into a solid unusable lump that I can't modify or get reliable dimensions off of. I am currently running Solidworks 2012, and I was hoping that the translator would of improved in 12 years. The last part I tried to translate (I downloaded it off of Thingiverse - http://www.thingiverse.com/thing:303490" onclick="window.open(this.href);return false; ) Solidworks said it was 2200 inches wide, Cura says the same dimension is more like 59mm.

What am I doing wrong? Is there a better solution to at least get dimensions off a STL part? preferably Free?
This Space for RENT --- PM me for info --- :roll: :lol:

My build thread - http://forum.seemecnc.com/viewtopic.php?f=42&t=6981" onclick="window.open(this.href);return false;
OG build thread - http://forum.seemecnc.com/viewtopic.php?f=42&t=1228" onclick="window.open(this.href);return false;
JFettig
Printmaster!
Posts: 824
Joined: Tue Nov 18, 2014 4:39 pm
Location: Minnesota

Re: Solidworks and STLs

Post by JFettig »

Stl files are generally a crapsoot. I wish people would post igs or step files as well. When you open them hit options and change the units.

Right click on the import in the feature tree and try import diagnostics to see if you can fix it. I will try that model in sw2014 in a bit.
User avatar
Proto
Printmaster!
Posts: 91
Joined: Wed Nov 19, 2014 9:30 pm
Location: Detroit, MI
Contact:

Re: Solidworks and STLs

Post by Proto »

Thanks

the one I was testing the importation on was body.stl
This Space for RENT --- PM me for info --- :roll: :lol:

My build thread - http://forum.seemecnc.com/viewtopic.php?f=42&t=6981" onclick="window.open(this.href);return false;
OG build thread - http://forum.seemecnc.com/viewtopic.php?f=42&t=1228" onclick="window.open(this.href);return false;
JFettig
Printmaster!
Posts: 824
Joined: Tue Nov 18, 2014 4:39 pm
Location: Minnesota

Re: Solidworks and STLs

Post by JFettig »

Have you tried pulling it in as a solid? http://grabcad.com/questions/how-do-i-c ... olid-model#" onclick="window.open(this.href);return false;

In those same options, change the units to millimeters.

It'll give you a solid and a surface for that file, its just the nature of a STL file, they are just surface triangles and are pretty poor.

For future reference, when you save a solidworks file into a STL, hit options and you can change the deviation number to something smaller so you have shorter line segments rather than long choppy segments.
geneb
ULTIMATE 3D JEDI
Posts: 5362
Joined: Mon Oct 15, 2012 12:47 pm
Location: Graham, WA
Contact:

Re: Solidworks and STLs

Post by geneb »

I've found that STL files are basically un-editable. If you need to change or dimension a part, try to get the native version of it. (IGES, STEP, etc.)

g.
Delta Power!
Defeat the Cartesian Agenda!
http://www.f15sim.com - 80-0007, The only one of its kind.
http://geneb.simpits.org - Technical and Simulator Projects
Polygonhell
ULTIMATE 3D JEDI
Posts: 2430
Joined: Mon Mar 26, 2012 1:44 pm
Location: Redmond WA

Re: Solidworks and STLs

Post by Polygonhell »

I've found STL files are virtually uneditable, I have successfully imported and modified exactly one of them in solidworks, and it was more work than just recreating the model would have been. I can usually pull reasonable dimensions off them but it's always a crapshoot, and involves trying to guess how the original author created the model to determine if 5.97 is actually intended to be 6.
I pulled all the dimensions off of a tantilus derivative and rebuilt a derivative in solidworks from those, but it was a lot of work, and involved some guess work as to what the actual dimension ought to be.
bot
Printmaster!
Posts: 993
Joined: Thu Sep 25, 2014 12:18 am
Location: Vancouver
Contact:

Re: Solidworks and STLs

Post by bot »

I can import STLs into solidworks just fine... I just can't seem to do anything with them.

How do you even measure them? Sketch onto them??
*not actually a robot
User avatar
heathenx
Printmaster!
Posts: 305
Joined: Fri Jan 17, 2014 8:53 am
Location: Northern Indiana

Re: Solidworks and STLs

Post by heathenx »

Just yesterday I imported an stl into blender, modified it and re-exported as an stl for printing. Blender isn't perfect but works in a pinch...and it's free.
Polygonhell
ULTIMATE 3D JEDI
Posts: 2430
Joined: Mon Mar 26, 2012 1:44 pm
Location: Redmond WA

Re: Solidworks and STLs

Post by Polygonhell »

I just use the measurement tool. The hard part is picking the right features for say getting the radius of a circle.
User avatar
heathenx
Printmaster!
Posts: 305
Joined: Fri Jan 17, 2014 8:53 am
Location: Northern Indiana

Re: Solidworks and STLs

Post by heathenx »

If someone is struggling then send me the stl. I'll convert it to a solid for you.
bot
Printmaster!
Posts: 993
Joined: Thu Sep 25, 2014 12:18 am
Location: Vancouver
Contact:

Re: Solidworks and STLs

Post by bot »

Maybe I just don't know how to use the measure tool... I click everywhere and nothing happens haha...
*not actually a robot
bubbasnow
ULTIMATE 3D JEDI
Posts: 1064
Joined: Fri Aug 02, 2013 4:24 pm
Location: Dayton, WA

Re: Solidworks and STLs

Post by bubbasnow »

i second blender for direct stl editing although it is horrible with dimensions.

all .stl files ive ever generated from solidworks have sliced just fine.
travelphotog
Printmaster!
Posts: 398
Joined: Tue Jul 15, 2014 12:30 pm
Location: Huntsville, Alabama (Marshall Space Flight Center)
Contact:

Re: Solidworks and STLs

Post by travelphotog »

I use Solidworks 2013 and pull in .STL files to modify them all the time. I do it for both 3D printing objects and also for cutting out on my CNC mill. It is a bit late tonight, but as I recall I import it as a solid object in the .STL import options tab. Then I do feature finding (pretty much automatic) and end up with a solid part in Solidworks that I then pretty much do with as I please. I have brought in .STLs from Thingiverse and then worked on them for the changes I wanted, then just saved as an STL again and printed them out just fine. I just did a google search on importing .STL files into Solidworks and it works good for me so far.
http://713maker.com/ Custom aluminum and carbon fiber hot end mounts for the Rostock Max and Orion.
User avatar
Proto
Printmaster!
Posts: 91
Joined: Wed Nov 19, 2014 9:30 pm
Location: Detroit, MI
Contact:

Re: Solidworks and STLs

Post by Proto »

Wow... I guess the way to get a lot of response to a post is to ignore it for a few days :o :lol:

On the scaling issue - I admit that I exclusively work in inch format. And I either plain-didn't-see-it, or assumed that it would convert to inch. (I vote the "didn't see it" option)

As far as the translation from STL (or anything else for that matter) I believe that the issues my be with the original file, being a bad translation or poor model. I am reminded of something. A Translation is only as good as the original... ie "Garbage in - Garbage out"


I have seen where some people were able to take parts off of Thingiverse and combine aspects of those parts for their own use. Now, are they cutting and pasting various parts of those STLs to make a new whole? or are they taking ideas from those parts and creating their own model? I'm not sure. It would be nice to be able to modify parts to your own needs.
This Space for RENT --- PM me for info --- :roll: :lol:

My build thread - http://forum.seemecnc.com/viewtopic.php?f=42&t=6981" onclick="window.open(this.href);return false;
OG build thread - http://forum.seemecnc.com/viewtopic.php?f=42&t=1228" onclick="window.open(this.href);return false;
User avatar
eatoutmikey
Printmaster!
Posts: 42
Joined: Wed Oct 29, 2014 10:47 am
Location: North Suburbs of Chicago

Re: Solidworks and STLs

Post by eatoutmikey »

Proto wrote:Wow... I guess the way to get a lot of response to a post is to ignore it for a few days :o :lol:

On the scaling issue - I admit that I exclusively work in inch format. And I either plain-didn't-see-it, or assumed that it would convert to inch. (I vote the "didn't see it" option)

As far as the translation from STL (or anything else for that matter) I believe that the issues my be with the original file, being a bad translation or poor model. I am reminded of something. A Translation is only as good as the original... ie "Garbage in - Garbage out"


I have seen where some people were able to take parts off of Thingiverse and combine aspects of those parts for their own use. Now, are they cutting and pasting various parts of those STLs to make a new whole? or are they taking ideas from those parts and creating their own model? I'm not sure. It would be nice to be able to modify parts to your own needs.
I will usually import an stl with feature recognition(sw2014). Using that I can modify to my hearts content or incorporate a design or feature. Not sure how the copy and paste would work in parametric terms with different parts relating to multiple features, with some relations inevitably being missing when you paste. It might be one of those things where its just easier to re-draw it yourself instead of spending all day trying to fix all the horrible errors you would probably end up with. Just my $.02
Rostock Max V2- E3d V6 Hot-end, Shower Curtain Enclosure.

When I tell people what I do all day at work, they seem amazed that someone is willing to PAY me. Now that i think about it...... So am I.
BTP
Printmaster!
Posts: 44
Joined: Sun Nov 23, 2014 11:44 am

Re: Solidworks and STLs

Post by BTP »

Proto wrote:Wow... I guess the way to get a lot of response to a post is to ignore it for a few days :o :lol:

On the scaling issue - I admit that I exclusively work in inch format. And I either plain-didn't-see-it, or assumed that it would convert to inch. (I vote the "didn't see it" option)

As far as the translation from STL (or anything else for that matter) I believe that the issues my be with the original file, being a bad translation or poor model. I am reminded of something. A Translation is only as good as the original... ie "Garbage in - Garbage out"


I have seen where some people were able to take parts off of Thingiverse and combine aspects of those parts for their own use. Now, are they cutting and pasting various parts of those STLs to make a new whole? or are they taking ideas from those parts and creating their own model? I'm not sure. It would be nice to be able to modify parts to your own needs.

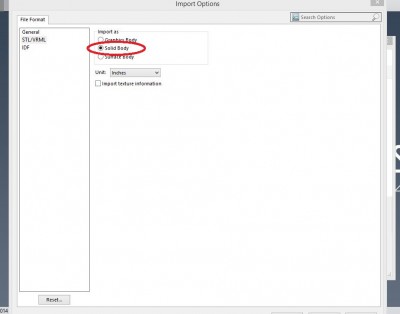

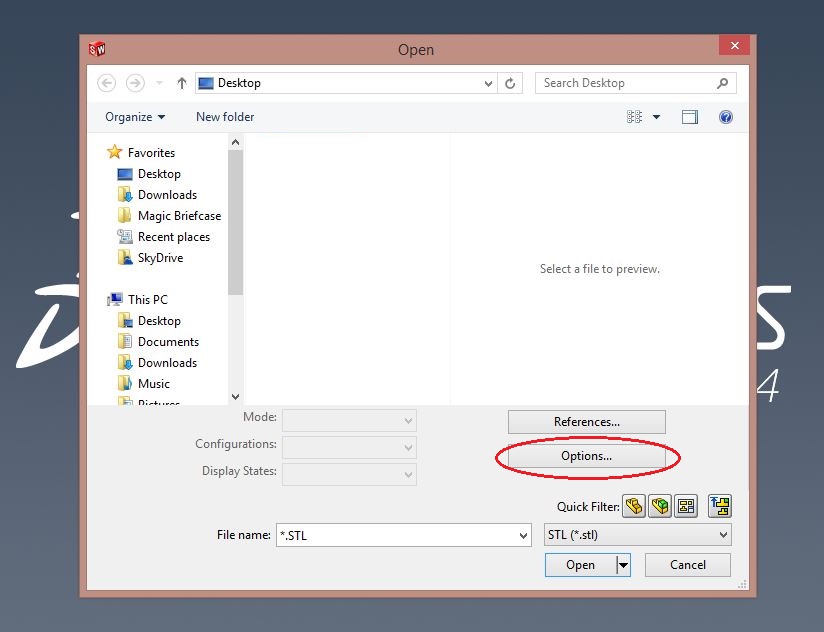

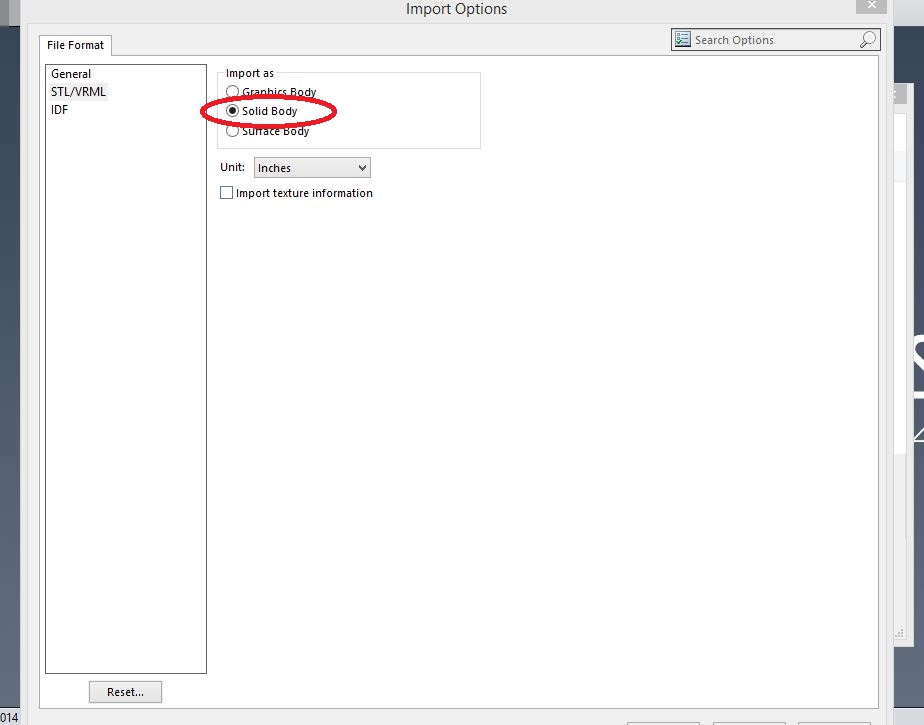

Importing STLs as solids into Solidworks is pretty simple. Check the screen captures. As far as modding whats there i.e. adding bodies to bodies, that is pretty simple too. Say you have three different files you'd like to combine into one part. Import all the STLs as solid bodies as separate parts. Then save each file individually as a solidpart file. Then open anyone of the three files and go Insert/Part and translate the parts to where you'd like them to be. Once you're satisfied with the position of everything you can then use the Combine feature and do exactly that, combine all three bodies into one solid body. From there, export as STL and you're ready to roll.
http://www.benchtopprecision.com" onclick="window.open(this.href);return false;
E3D V6 Mount -->> http://benchtopprecision.com/e3d-v6-mou ... tockmaxv2/" onclick="window.open(this.href);return false;
