How to wire new board?

[tom10122]

I just got my new h-1 kit, however i was skipping around and wanted to get some wiring done. But it doesnt have an easy driver or the four pins to attach it to. At first i thought the easy driver was just forgotten but now im wondering if it isn't needed. It has 5 pins i think, more than 4 at least. There is nothing under the wiring schematic or manuals.

[michaellatif]

Hey Tom,

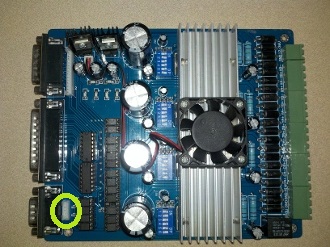

You don't need the easydriver. You have a 4 axis board that will drive the X, Y, Z and extruder step motors. The easy driver WAS used to drive the extruder step motor, but this was replaced with the board's extra fourth axis.

[tom10122]

thanks , i sorta double posted

[mtizle]

Below is the link to the current wiring and jumpers for the 4 Axis board. I will also post my motor tuning configs. Mine are different than the original post.


http://forum.seemecnc.com/viewtopic.php ... 9&start=20

Mtizle
